Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish

Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish

브랜드 이름: M-CITY
모델 번호: MCT-AC 커버
MOQ: 50대
가격: USD50-80 per unit
지불 조건: 티/티
공급능력: 달 당 5000units
상세 정보
원래 장소:
중국 포산
인증:
ISO9000
재료:
알루미늄 합금
알루미늄 두께:
1.5 밀리미터, 2.0 밀리미터, 2.5 밀리미터, 3.0 밀리미터
표면 처리:
분체 도장, PVDF 페인트, 나뭇결
색상:
모든 ral 색상, 나무 곡물
응용:
아파트, 호텔, 상업용 건물, 주거용 부동산
연락처 이메일:
mcityalu@163.com
처리:
절단, CNC, 절곡, 도장, 조립, 검사, 포장
기술:
천공, 레이저 절단, CNC 터렛 펀칭, 조각, 각인
키워드:
에어컨 유닛 커버
포장 세부 사항:
수출 포장, 합판 케이스, 금속 케이스, 보호 필름+ 버블 필름
공급 능력:
달 당 5000units
제품 설명

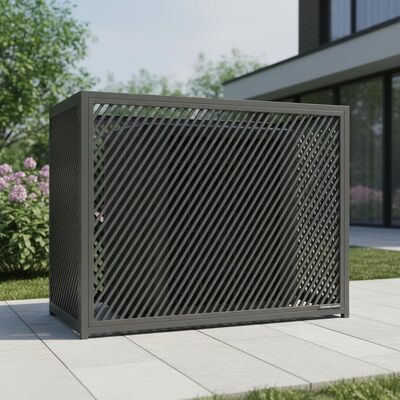

Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres
Premium Aluminum Architectural AC Enclosures
The Ultimate Solution for Modern Apartment Projects & High-Volume Wholesale
Elevate the exterior aesthetics of your architectural projects while providing superior protection for HVAC systems. Our precision-engineered aluminum air conditioner covers are designed to meet the rigorous standards of the European and Oceania markets.

Key Specifications & Advantages
High-Grade Material & Durability
Built to last in diverse climates—from the coastal salt air of Australia to the snowy winters of Europe.
  • Material: 100% Premium Aluminum Alloy (Non-rusting)
  • Surface Finish: AkzoNobel or PPG Outdoor Powder Coating
  • Weather Resistance: UV-resistant, corrosion-resistant, and fireproof (Class A)
Modular "Easy-Fit" Design (Installation in Minutes)
We understand that labor costs are high in Europe and Australia. Our covers feature a tool-free/minimal-tool assembly system:

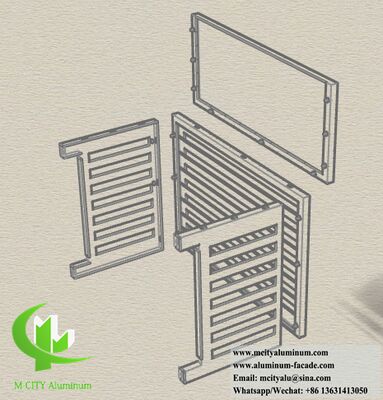

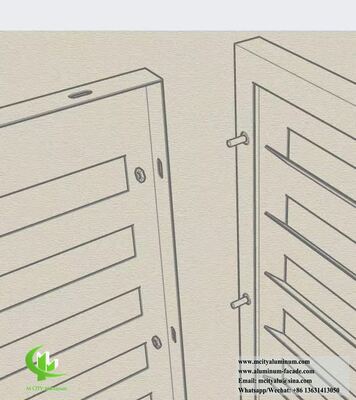

  • Pin-and-Slot Connection: As shown in the technical drawings, the panels use a sophisticated interlocking pin system
  • No Welding Required: Simple assembly on-site reduces labor time by 70%
  • Flat-Pack Shipping: Delivered in compact packaging to save on international freight and warehouse storage costs
Fully Customizable for Large-Scale Projects
Whether it's a high-rise apartment in Sydney or a residential complex in Berlin, we tailor every unit to your specs:

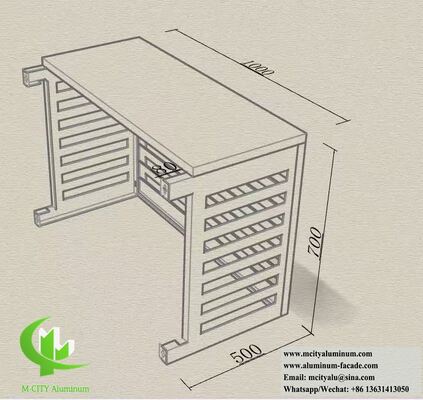

  • Custom Dimensions: Standard sizes (1000 × 700 × 500 mm) available, or custom-made to fit specific HVAC models
  • Mounting Options: Choose between Wall-Mounted (integrated bracket system) or Floor-Standing (stable base design)
  • Color Palette: Full range of RAL colors available to match any building facade
Optimized Airflow & Efficiency
The CNC-cut louvers are strategically angled to:
  • Ensure maximum ventilation for heat dissipation
  • Protect the AC unit from direct sunlight and debris
  • Provide sound dampening to reduce compressor noise

Technical Details
Feature Specification
Material Thickness 1.5mm - 3.0mm (Customizable)
Standard Size L1000 × H700 × W500 mm, customized
Assembly System Modular Pin-Lock System (Screw-less appearance)
Color Options RAL Colors (Anthracite Grey, Black, White, Timber Grain, etc.)
Application Apartments, Hotels, Commercial Buildings, Residential Estates
Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish 0 Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish 1 Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish 2 Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish 3

Why Partner With Us?
With over 20 years of manufacturing expertise, we specialize in B2B supply for large-scale developments.
  • Project Ready: We provide full CAD/BIM support for architects
  • Compliance: Designed to meet European and AU/NZ building codes for safety and ventilation
  • Factory Direct: Competitive wholesale pricing with no middleman

Customized Size Aluminum Louvred Screen AC Unit Cover with 45° Angled Louvres and Powder Coated Finish 4
